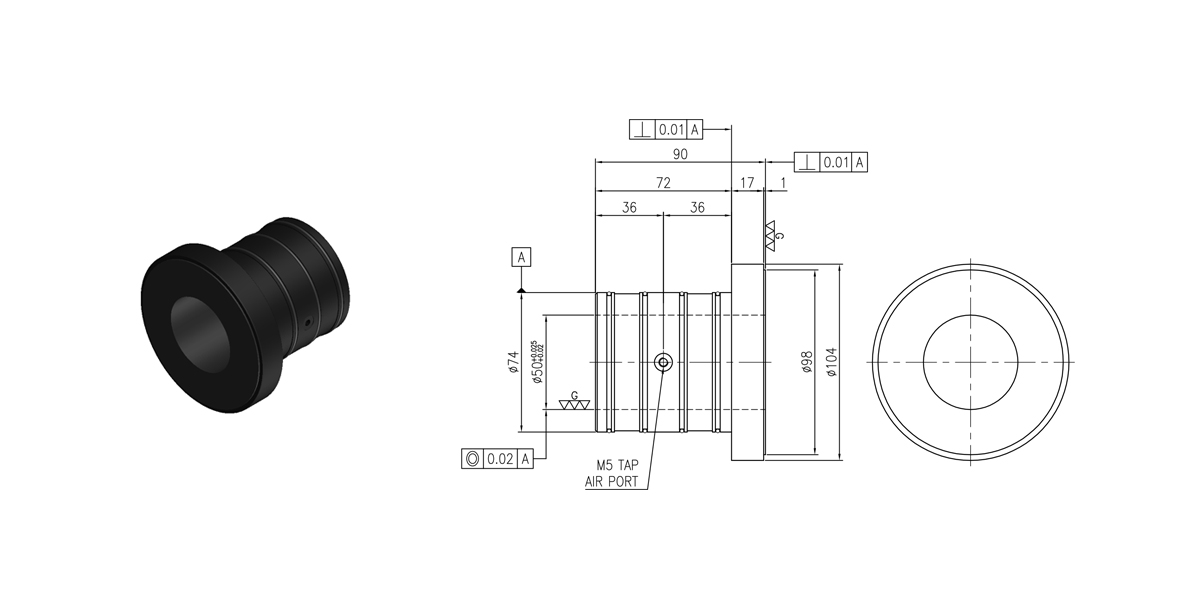

T40050ST
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 916 | 1136 |
| Thrust Load Max | N | 1097 | 1360 |
| Radial Stiffness | N/μm | 108 | 134 |
| Axial Stiffness | N/μm | 111 | 137 |
| Flow | ℓ/min | 16.5 | 22.6 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø50 | |
| Bushing (O.D) Size | mm | Ø74 | |
| Flange (O.D) Size | mm | Ø104 | |
| Bushing Length | mm | 90 | |
| Thrust Face (O.D) | mm | Ø98 | |
| Bushing Weight | g | 618 | |
| Shaft O.D/Tolerance | mm | Ø50g6 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

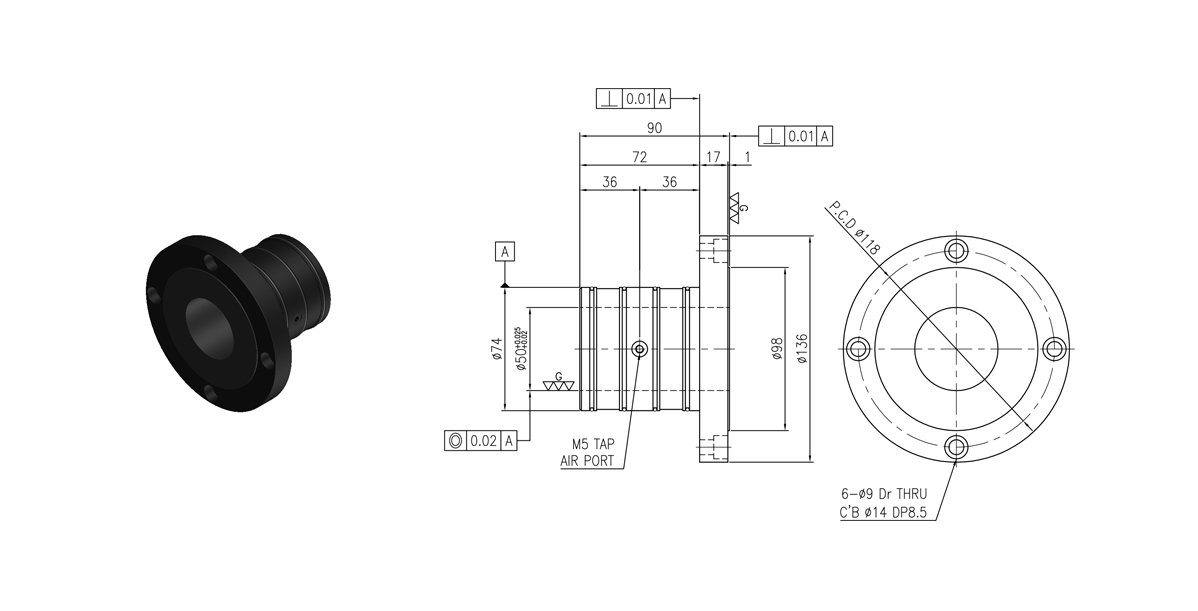

T40050FT
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 916 | 1136 |
| Thrust Load Max | N | 1097 | 1360 |
| Radial Stiffness | N/μm | 108 | 134 |
| Axial Stiffness | N/μm | 111 | 137 |
| Flow | ℓ/min | 16.5 | 22.6 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø50 | |
| Bushing (O.D) Size | mm | Ø74 | |
| Flange (O.D) Size | mm | Ø136 | |
| Bushing Length | mm | 90 | |
| Thrust Face (O.D) | mm | Ø98 | |
| Bushing Weight | g | 829 | |
| Shaft O.D/Tolerance | mm | Ø50g6 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||
