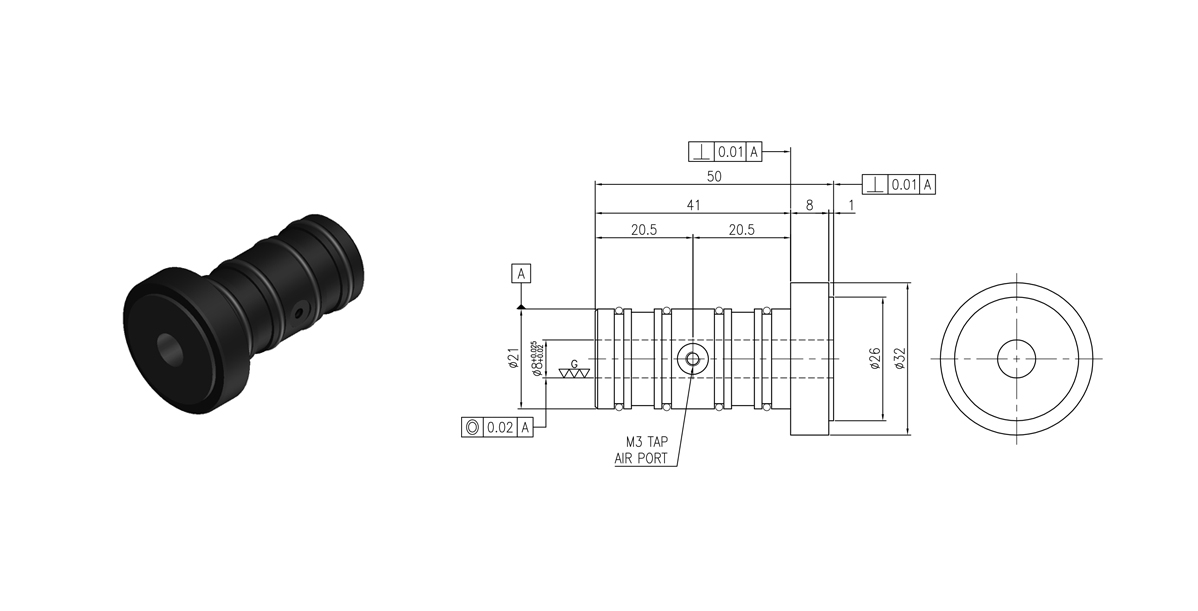

T40008ST
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 19 | 24 |
| Thrust Load Max | N | 64 | 79 |
| Radial Stiffness | N/μm | 4.3 | 5.3 |
| Axial Stiffness | N/μm | 14 | 18 |
| Flow | ℓ/min | 3.0 | 4.3 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø8 | |
| Bushing (O.D) Size | mm | Ø21 | |
| Flange (O.D) Size | mm | Ø32 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø26 | |
| Bushing Weight | g | 40 | |
| Shaft O.D/Tolerance | mm | Ø8g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

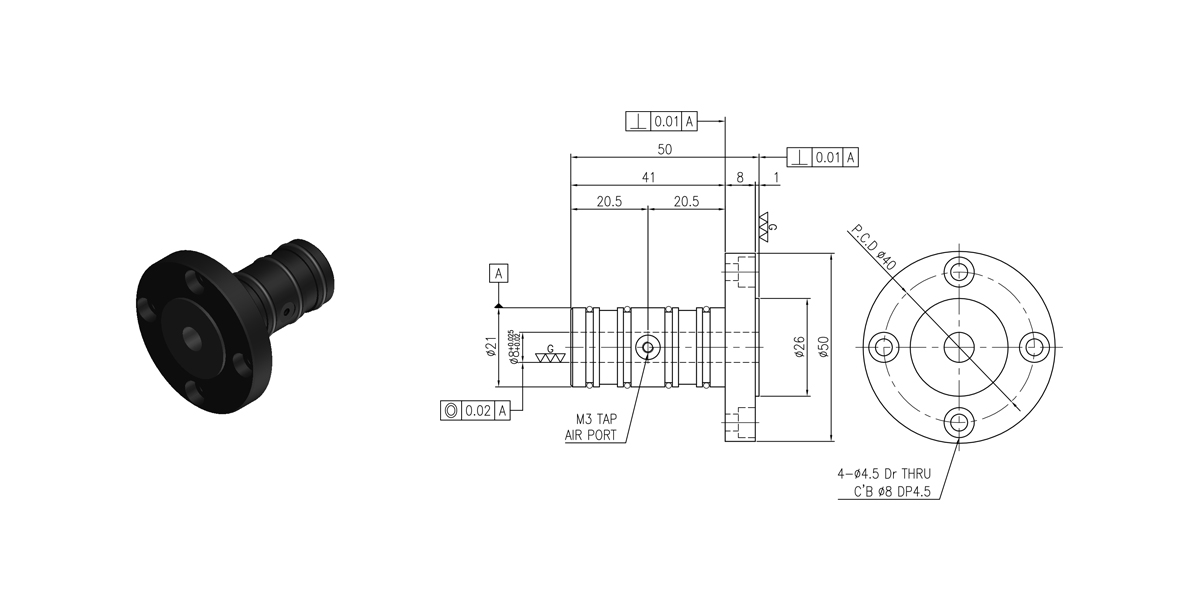

T40008FT
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 19 | 24 |
| Thrust Load Max | N | 64 | 79 |
| Radial Stiffness | N/μm | 4.3 | 5.3 |
| Axial Stiffness | N/μm | 14 | 18 |
| Flow | ℓ/min | 3.0 | 4.3 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø8 | |
| Bushing (O.D) Size | mm | Ø21 | |
| Flange (O.D) Size | mm | Ø50 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø26 | |
| Bushing Weight | g | 58 | |
| Shaft O.D/Tolerance | mm | Ø8g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||
