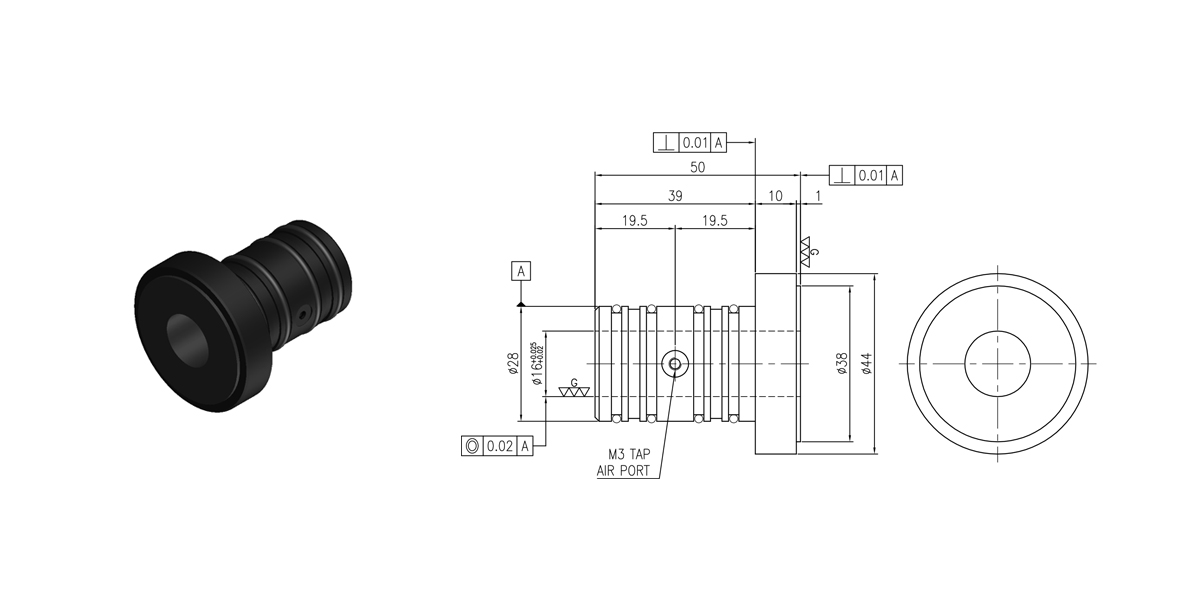

T40016ST
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 76 | 94 |
| Thrust Load Max | N | 183 | 227 |
| Radial Stiffness | N/μm | 16 | 20 |
| Axial Stiffness | N/μm | 39 | 48 |
| Flow | ℓ/min | 5.1 | 7.1 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø16 | |
| Bushing (O.D) Size | mm | Ø28 | |
| Flange (O.D) Size | mm | Ø44 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø38 | |
| Bushing Weight | g | 66 | |
| Shaft O.D/Tolerance | mm | Ø16g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

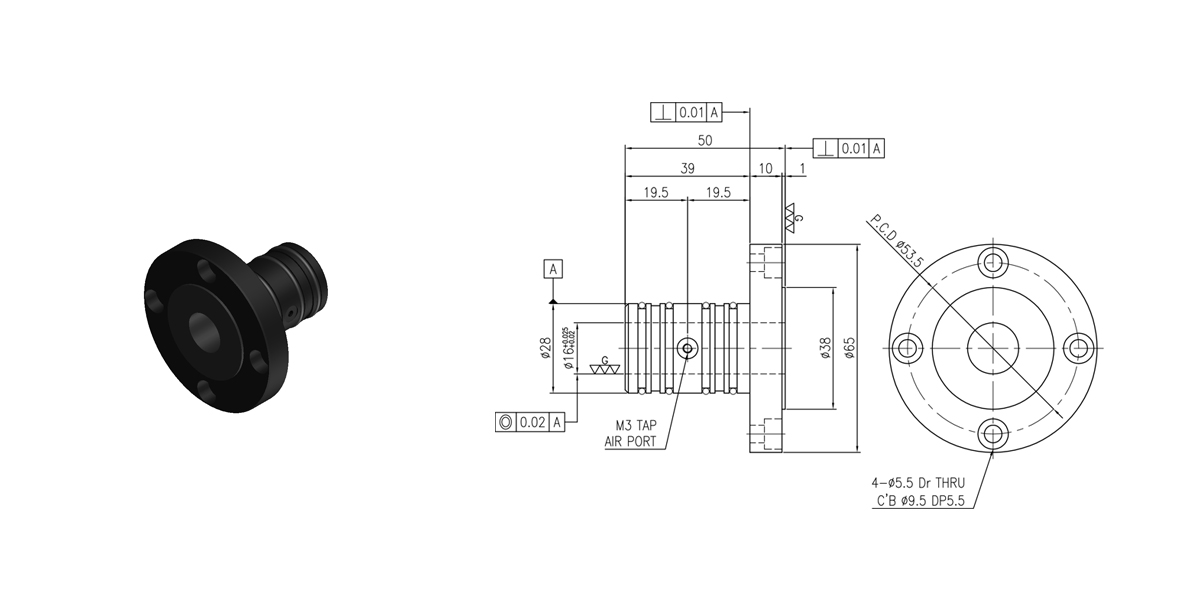

T40016FT
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 76 | 94 |
| Thrust Load Max | N | 183 | 227 |
| Radial Stiffness | N/μm | 16 | 20 |
| Axial Stiffness | N/μm | 39 | 48 |
| Flow | ℓ/min | 5.1 | 7.1 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø16 | |
| Bushing (O.D) Size | mm | Ø28 | |
| Flange (O.D) Size | mm | Ø65 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø38 | |
| Bushing Weight | g | 101 | |
| Shaft O.D/Tolerance | mm | Ø16g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||
