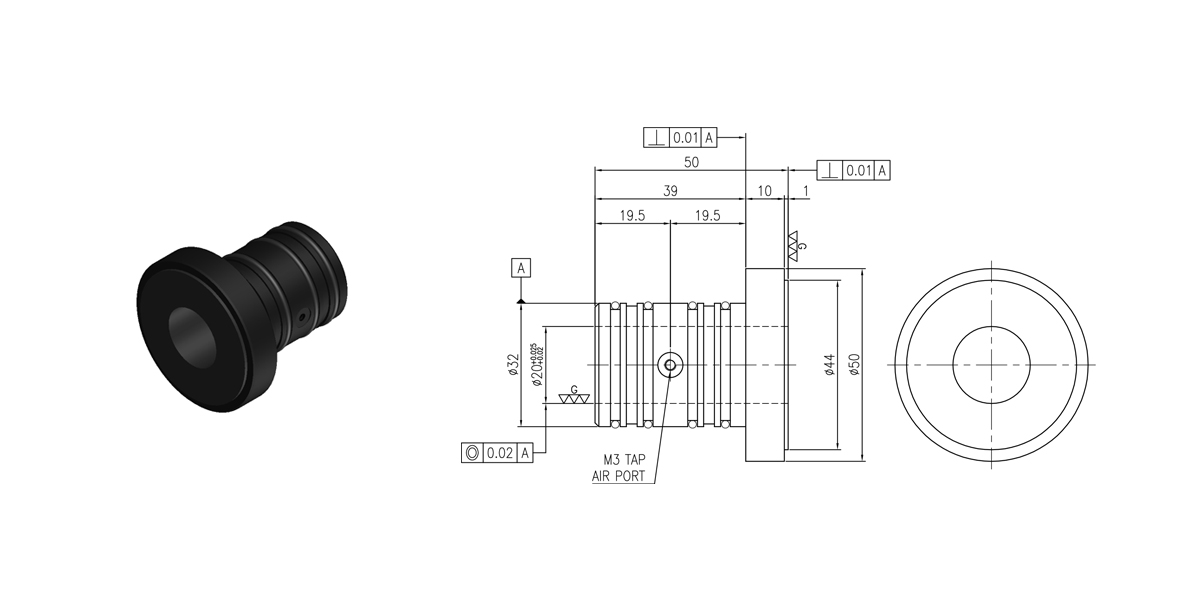

T40020ST
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 130 | 161 |
| Thrust Load Max | N | 210 | 260 |
| Radial Stiffness | N/μm | 22 | 28 |
| Axial Stiffness | N/μm | 36 | 45 |
| Flow | ℓ/min | 6.4 | 9.0 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø20 | |
| Bushing (O.D) Size | mm | Ø32 | |
| Flange (O.D) Size | mm | Ø50 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø44 | |
| Bushing Weight | g | 80 | |
| Shaft O.D/Tolerance | mm | Ø20g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

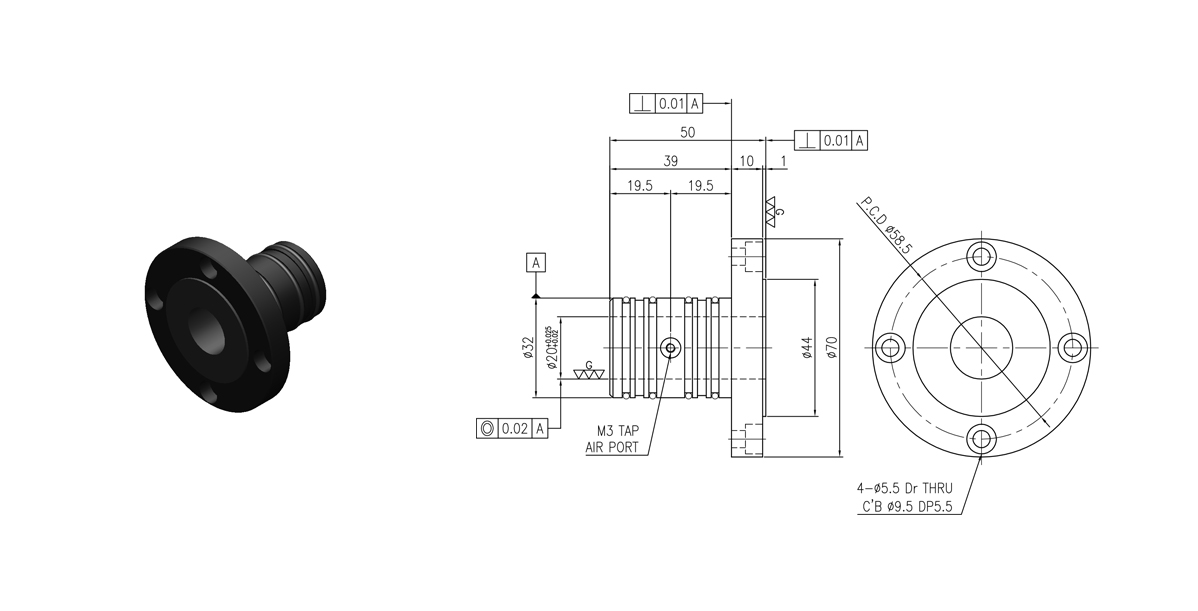

T40020FT
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial Load Max | N | 130 | 161 |
| Thrust Load Max | N | 210 | 260 |
| Radial Stiffness | N/μm | 22 | 28 |
| Axial Stiffness | N/μm | 36 | 45 |
| Flow | ℓ/min | 6.4 | 9.0 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø20 | |
| Bushing (O.D) Size | mm | Ø32 | |
| Flange (O.D) Size | mm | Ø70 | |
| Bushing Length | mm | 50 | |
| Thrust Face (O.D) | mm | Ø44 | |
| Bushing Weight | g | 116 | |
| Shaft O.D/Tolerance | mm | Ø20g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||
