T40020F
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial load Max | N | 130 | 161 |
| Radial Stiffness | N/μm | 22 | 27 |
| Flow | ℓ/min | 5.4 | 7.6 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø20 | |
| Bushing (O.D) Size | mm | Ø32 | |
| Flange (O.D) Size | mm | Ø54 | |
| Bushing Length | mm | 50 | |
| Bushing Weight | g | 65 | |
| Shaft O.D/Tolerance | mm | Ø20g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

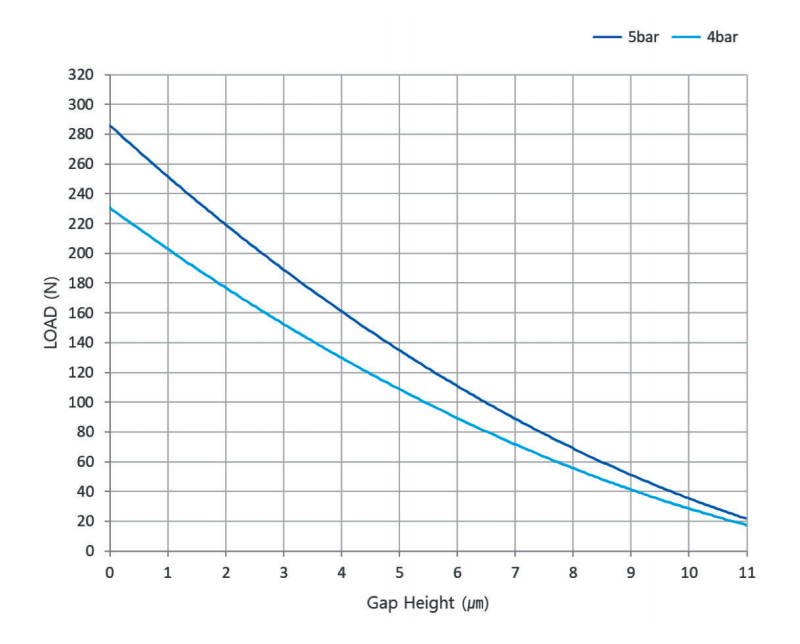

T40020F Flange Air Bushing 20mm Load Graph
