T40025F
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial load Max | N | 182 | 226 |
| Radial Stiffness | N/μm | 32 | 40 |
| Flow | ℓ/min | 6.3 | 8.8 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø25 | |
| Bushing (O.D) Size | mm | Ø39 | |
| Flange (O.D) Size | mm | Ø62 | |
| Bushing Length | mm | 57 | |
| Bushing Weight | g | 102 | |
| Shaft O.D/Tolerance | mm | Ø25g6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

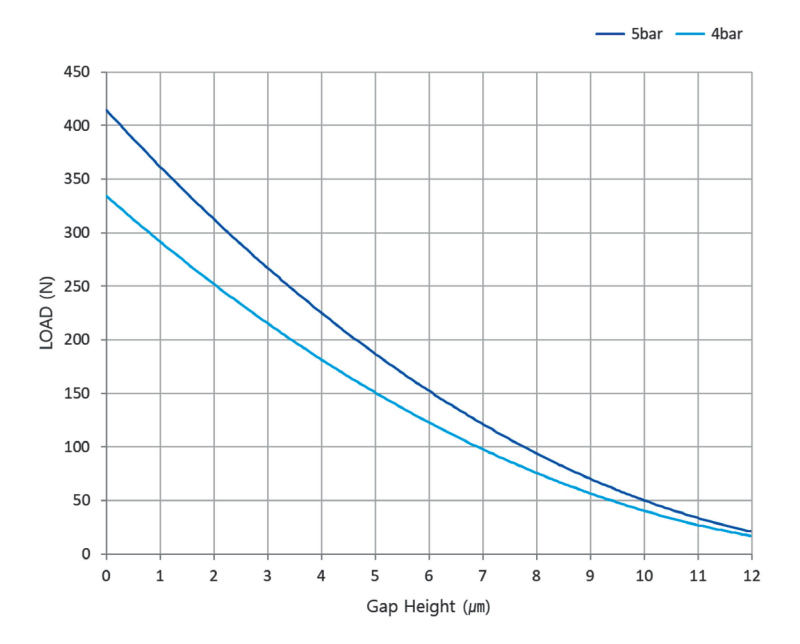

T40025F Flange Air Bushing 25mm Load Graph
