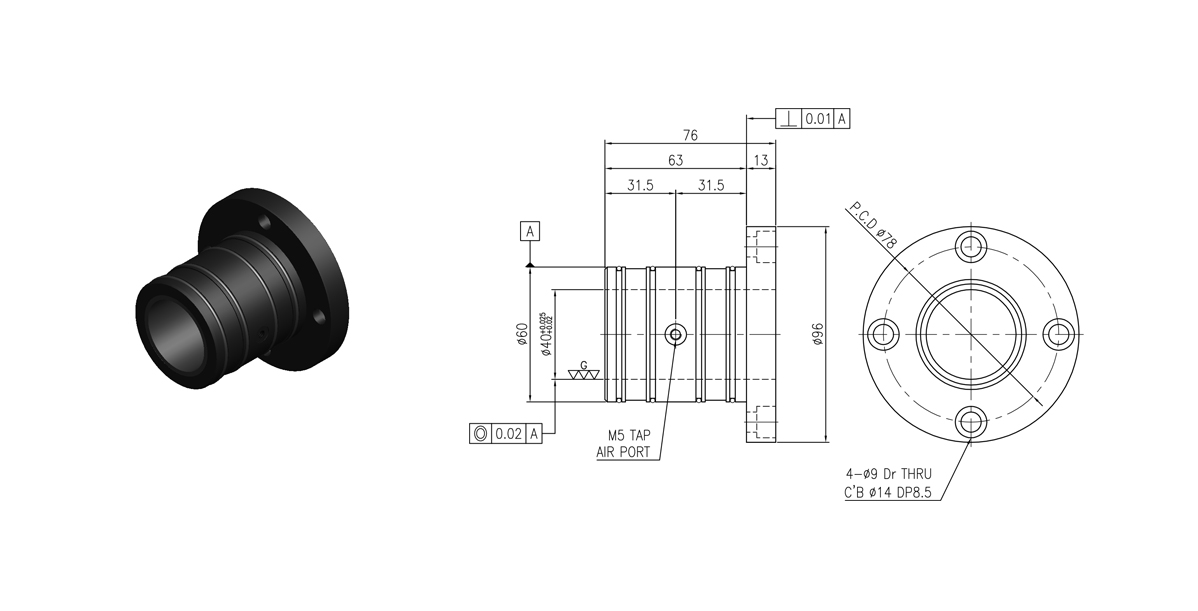

T40040F
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial load Max | N | 625 | 775 |
| Radial Stiffness | N/μm | 70 | 87 |
| Flow | ℓ/min | 10.0 | 13.7 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø40 | |
| Bushing (O.D) Size | mm | Ø60 | |
| Flange (O.D) Size | mm | Ø96 | |
| Bushing Length | mm | 76 | |
| Bushing Weight | g | 368 | |
| Shaft O.D/Tolerance | mm | Ø40g6 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

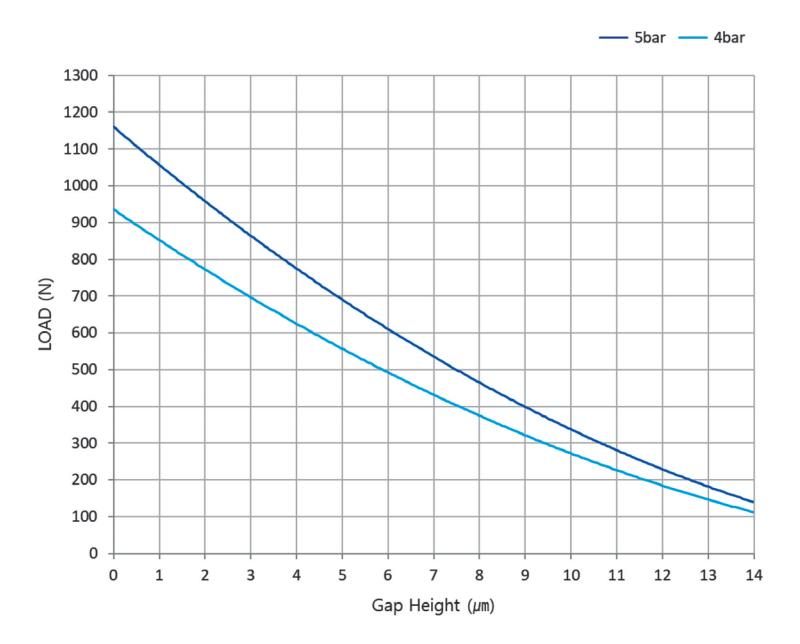

T40040F Flange Air Bushing 40mm Load Graph
