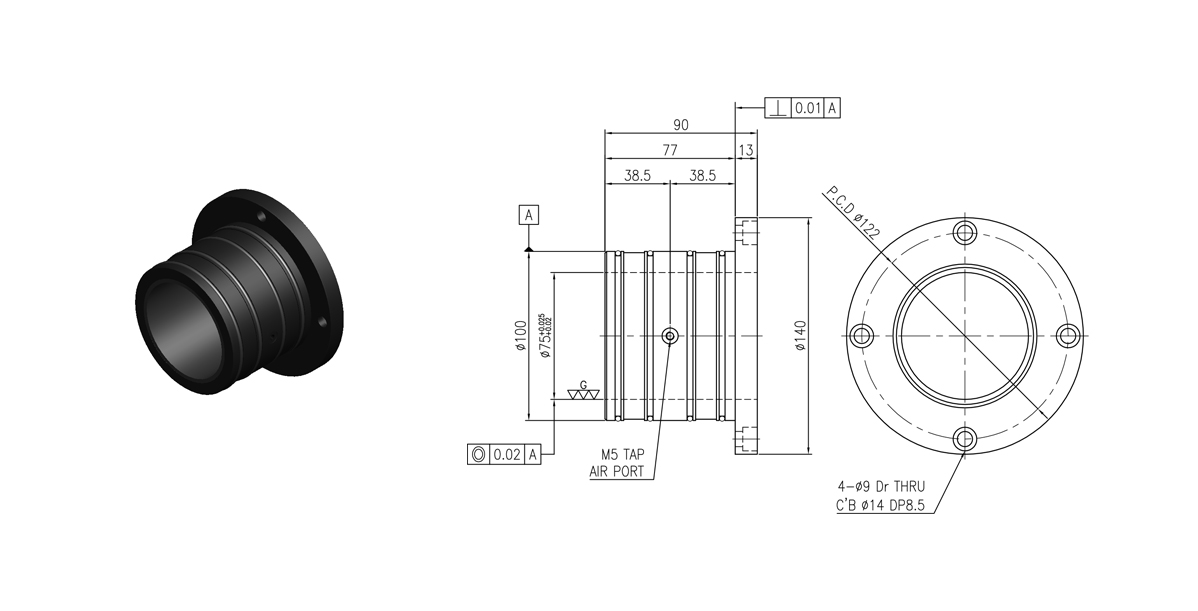

T40075F
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Radial load Max | N | 1221 | 1514 |
| Radial Stiffness | N/μm | 156 | 194 |
| Flow | ℓ/min | 19.0 | 25.8 |
| Air Gap | μm | 4 | |
| Bushing (I.D) Size | mm | Ø75 | |
| Bushing (O.D) Size | mm | Ø100 | |
| Flange (O.D) Size | mm | Ø140 | |
| Bushing Length | mm | 90 | |
| Bushing Weight | g | 757 | |
| Shaft O.D/Tolerance | mm | Ø75g6 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

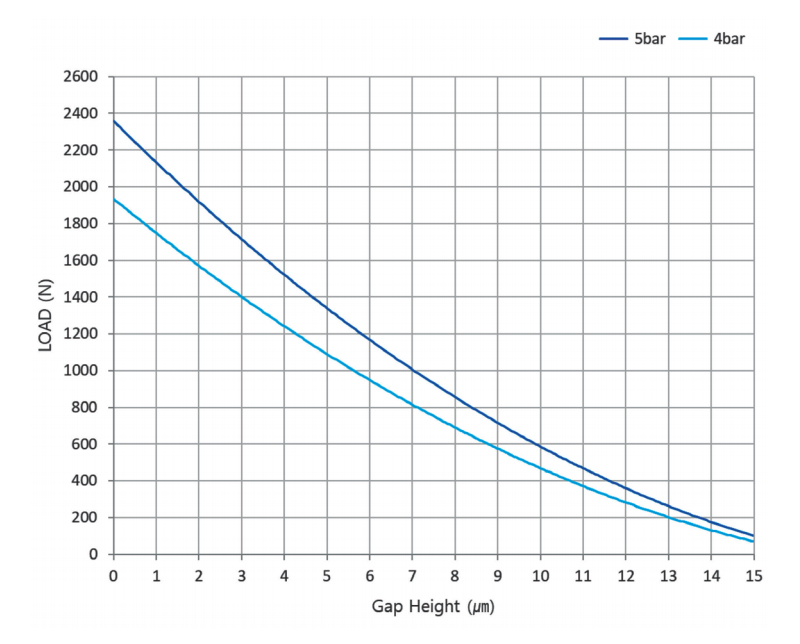

T40075F Flange Air Bushing 75mm Load Graph
