T10125S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 3102 | 3877 |
| Stiffness | N/μm | 280 | 350 |
| Flow | ℓ/min | 8.8 | 13.2 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø125 | |
| Bearing Height | mm | 35 | |
| Bearing Weight | kg | 0.95 | |
| Flatness | μm | 1 | |
| Ball Socket Size | mm | Ø20 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

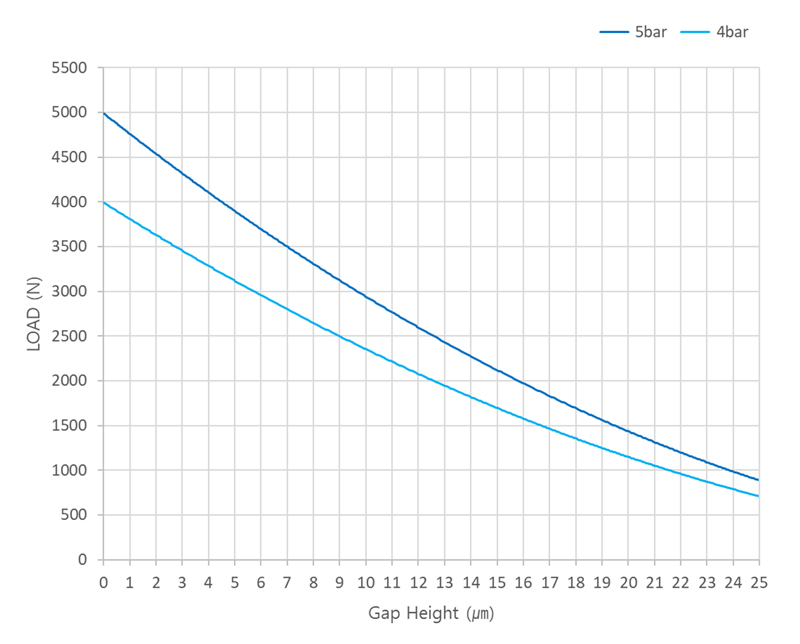

T10125S1 Round Air Bearing 125mm Load Graph
