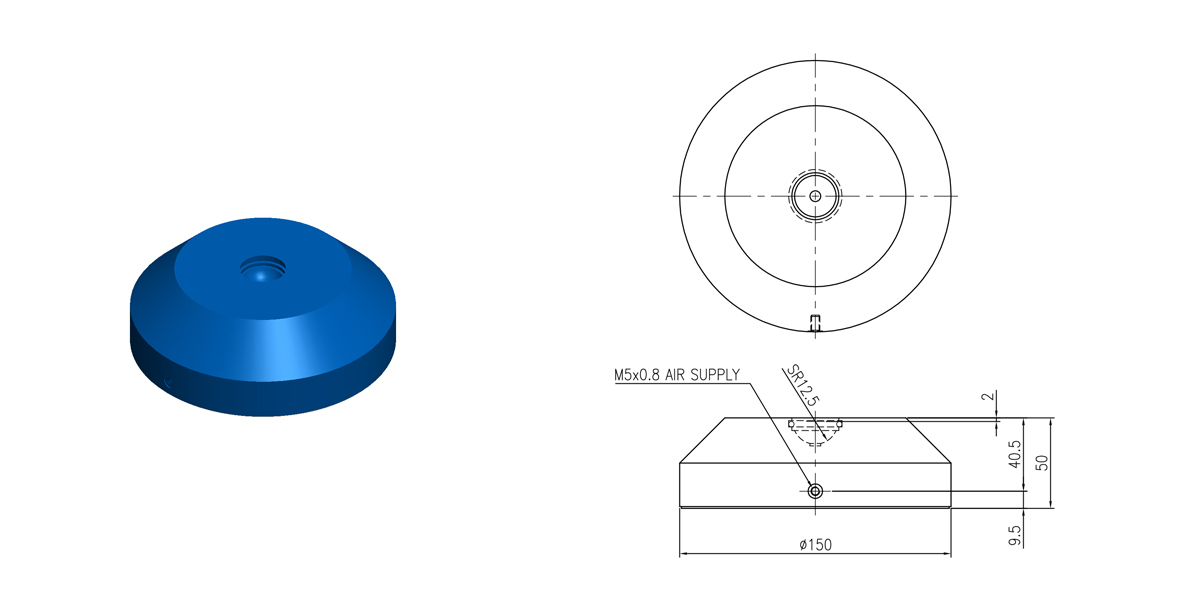

T10150S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 4960 | 6200 |
| Stiffness | N/μm | 461 | 576 |
| Flow | ℓ/min | 10.5 | 15.8 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø150 | |
| Bearing Height | mm | 50 | |
| Bearing Weight | kg | 1.9 | |
| Flatness | μm | 1.0 | |
| Ball Socket Size | mm | Ø25 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

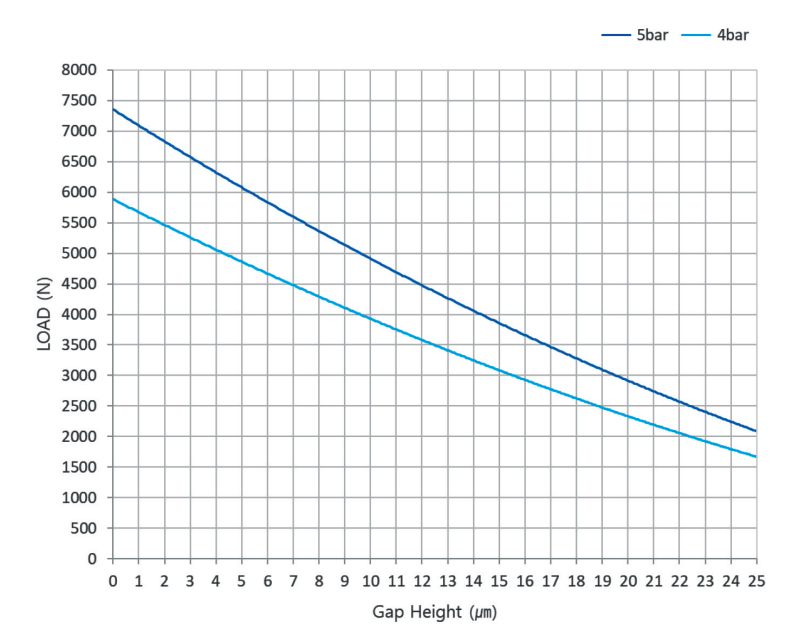

T10150S1 Round Air Bearing 150mm Load Graph
