T10200S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 8963 | 11204 |
| Stiffness | N/μm | 798 | 998 |
| Flow | ℓ/min | 14.0 | 22.4 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø200 | |
| Bearing Height | mm | 70 | |
| Bearing Weight | kg | 5.0 | |
| Flatness | μm | 1.5 | |
| Ball Socket Size | mm | Ø25 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

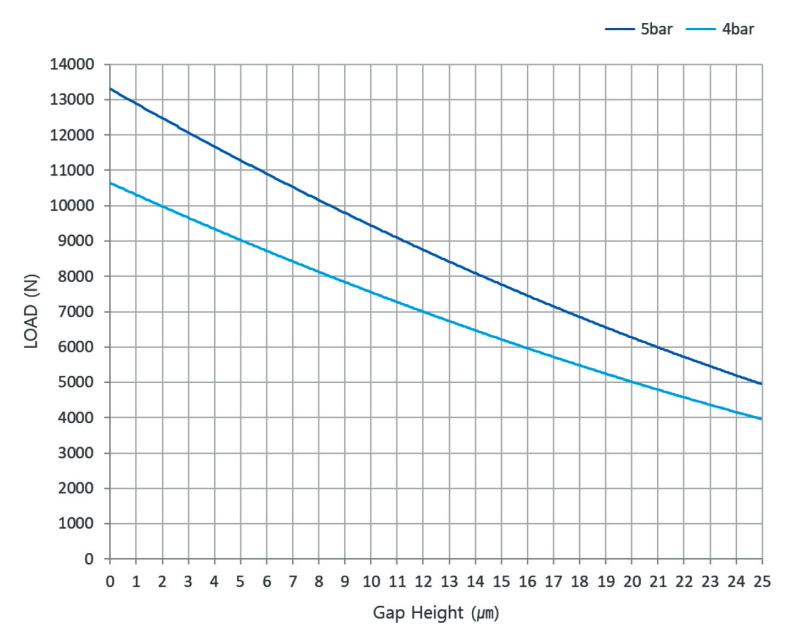

T10200S1 Round Air Bearing 200mm Load Graph
