T10250S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 13675 | 17094 |
| Stiffness | N/μm | 1149 | 1437 |
| Flow | ℓ/min | 18.5 | 29.6 |
| Fly Height | μm | 5 | |

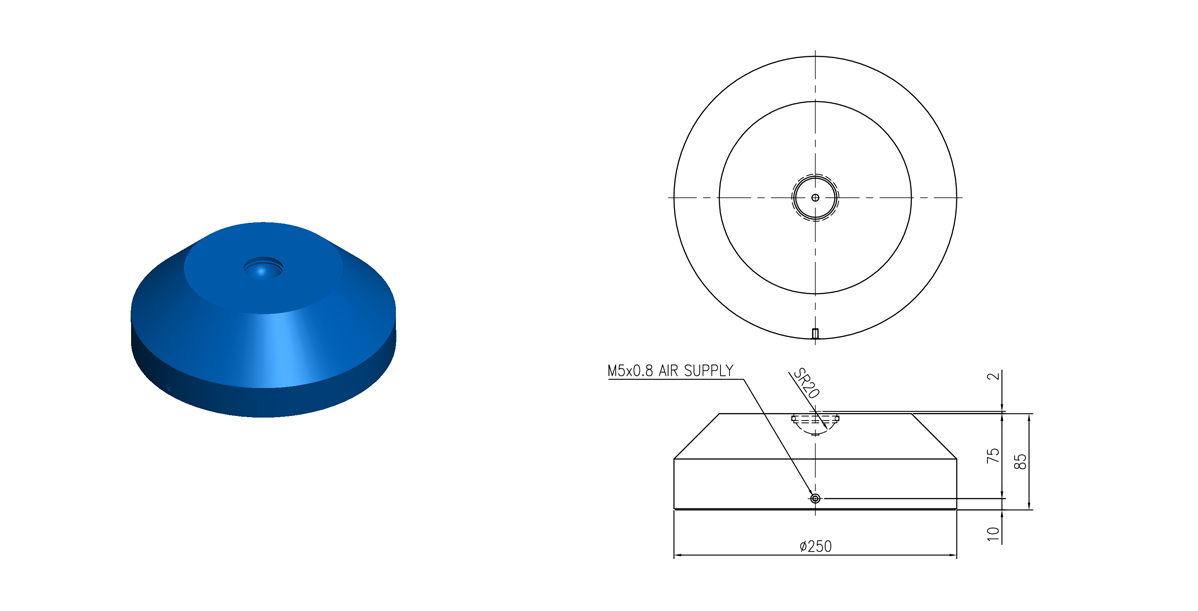

| Bearing Size | mm | Ø250 | |
| Bearing Height | mm | 85 | |
| Bearing Weight | kg | 9.2 | |
| Flatness | μm | 1.5 | |
| Ball Socket Size | mm | Ø40 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

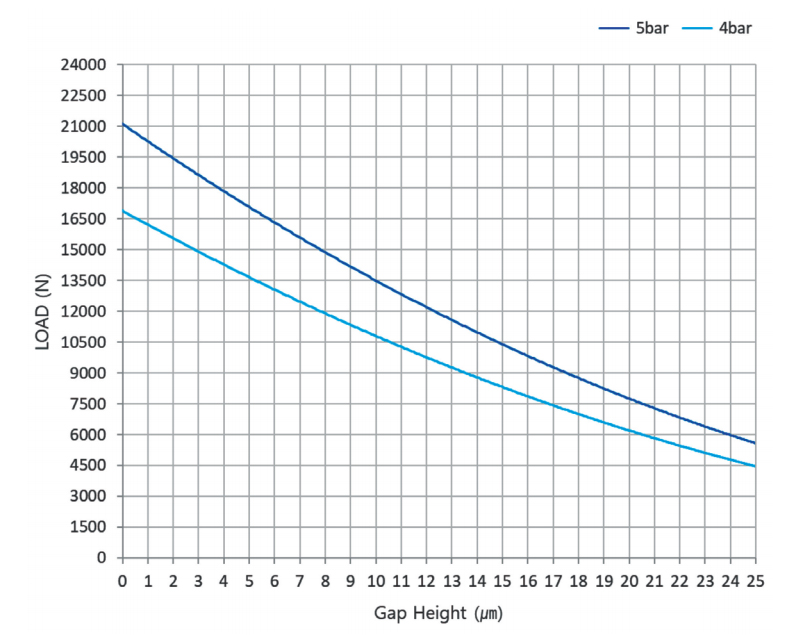

T10250S1 Round Air Bearing 250mm Load Graph
