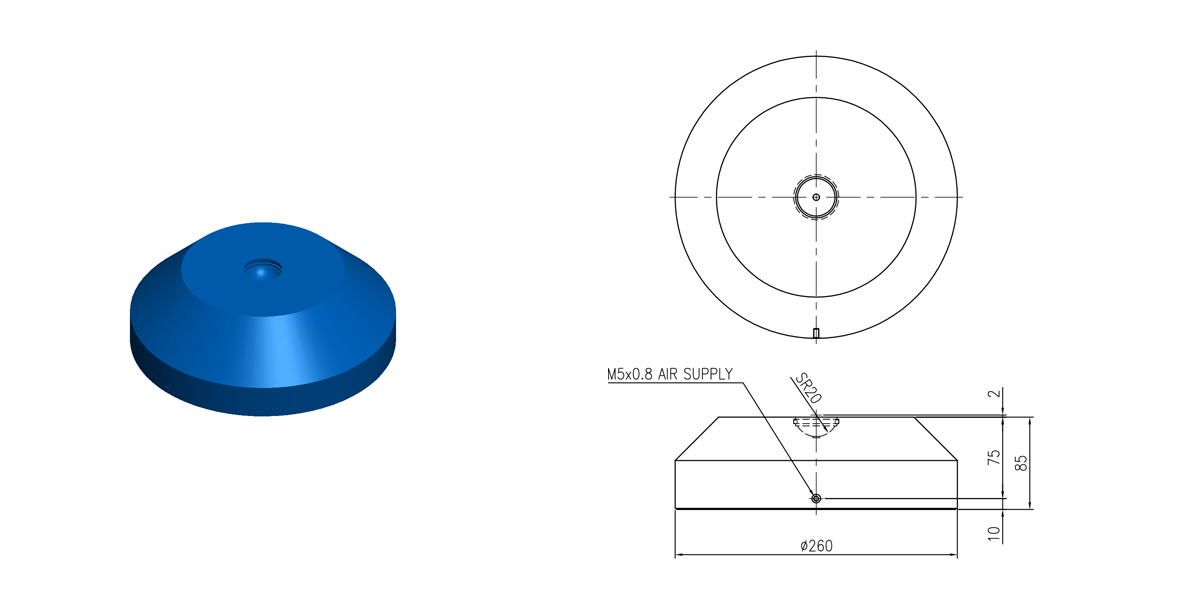

T10260S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 15021 | 18776 |
| Stiffness | N/μm | 1232 | 1540 |
| Flow | ℓ/min | 21.0 | 33.6 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø260 | |
| Bearing Height | mm | 85 | |
| Bearing Weight | kg | 9.6 | |
| Flatness | μm | 1.5 | |
| Ball Socket Size | mm | Ø40 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

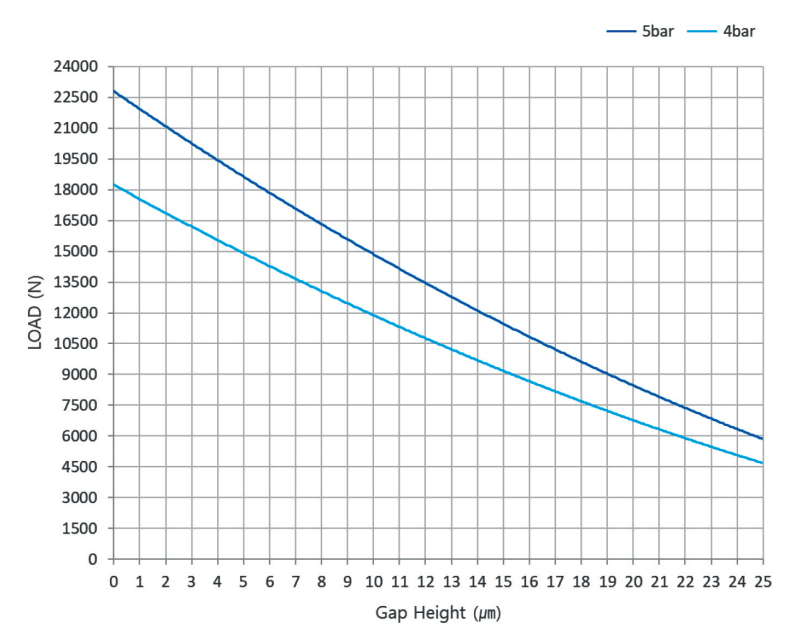

T10260S1 Round Air Bearing 260mm Load Graph
