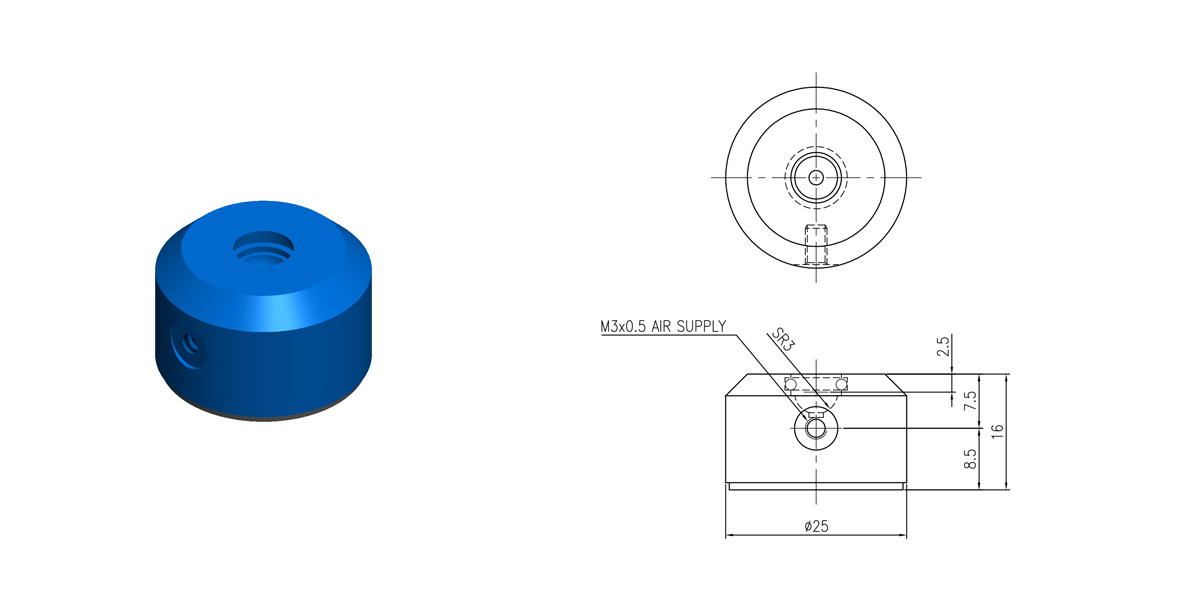

T10025S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 74 | 93 |
| Stiffness | N/μm | 16 | 20 |
| Flow | ℓ/min | 1.0 | 1.6 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø25 | |
| Bearing Height | mm | 16 | |
| Bearing Weight | kg | 0.02 | |
| Flatness | μm | 0.5 | |
| Ball Socket Size | mm | Ø6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

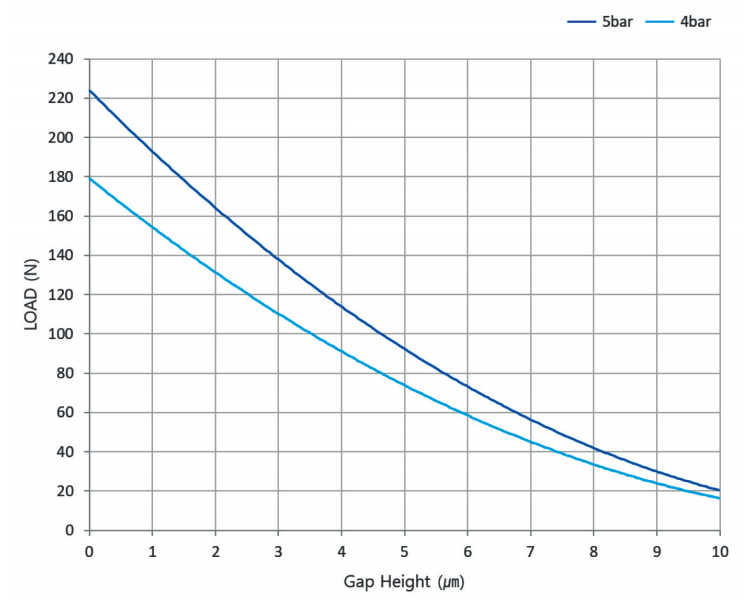

T10025S1 Round Air Bearing 25mm Load Graph
