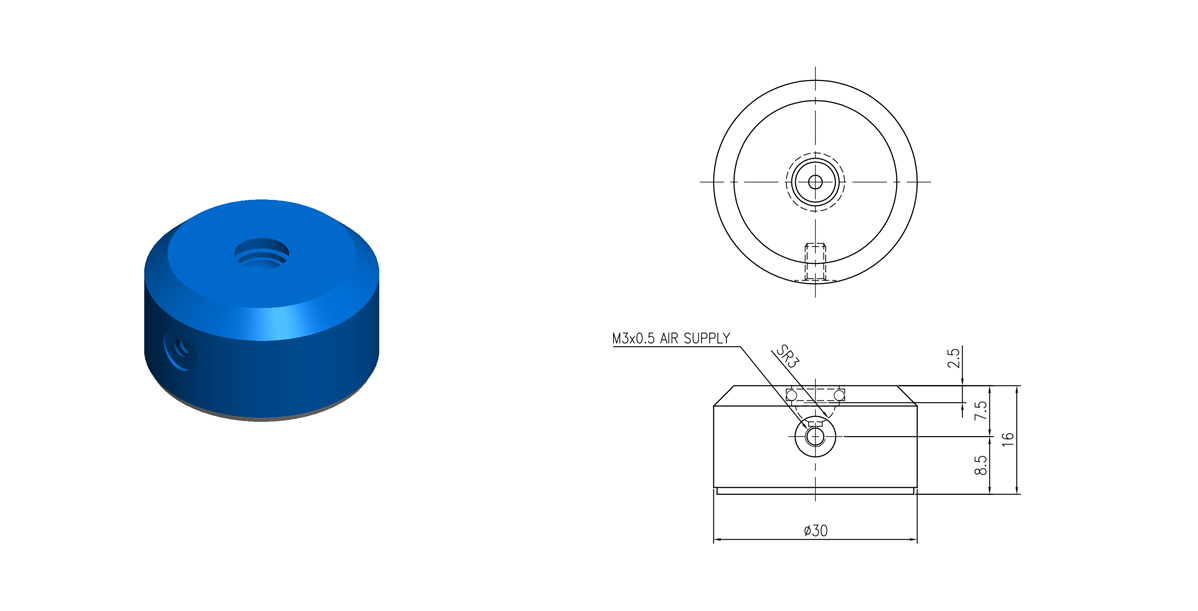

T10030S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 108 | 135 |
| Stiffness | N/μm | 20 | 25 |
| Flow | ℓ/min | 1.1 | 1.8 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø30 | |
| Bearing Height | mm | 16 | |
| Bearing Weight | kg | 0.03 | |
| Flatness | μm | 0.5 | |
| Ball Socket Size | mm | Ø6 | |
| Pressure Port Thread | mm | M3×0.5 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

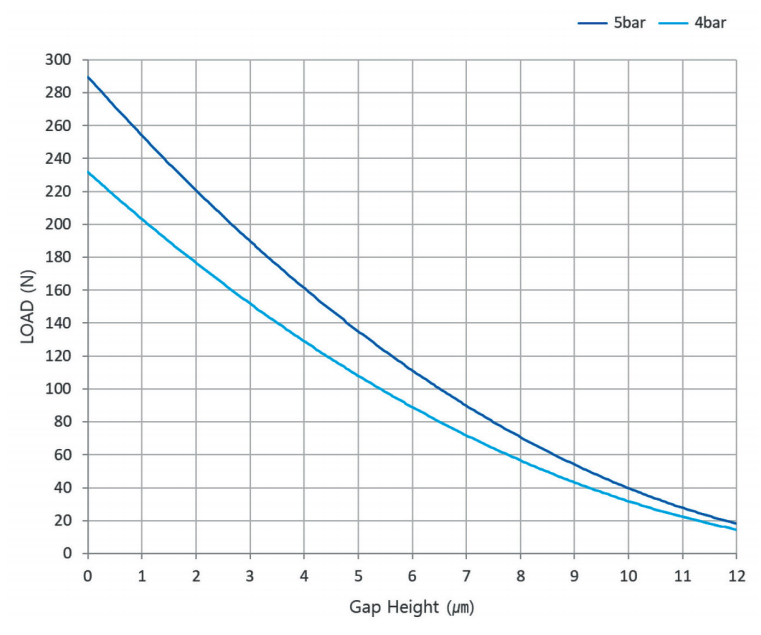

T10030S1 Round Air Bearing 30mm Load Graph
