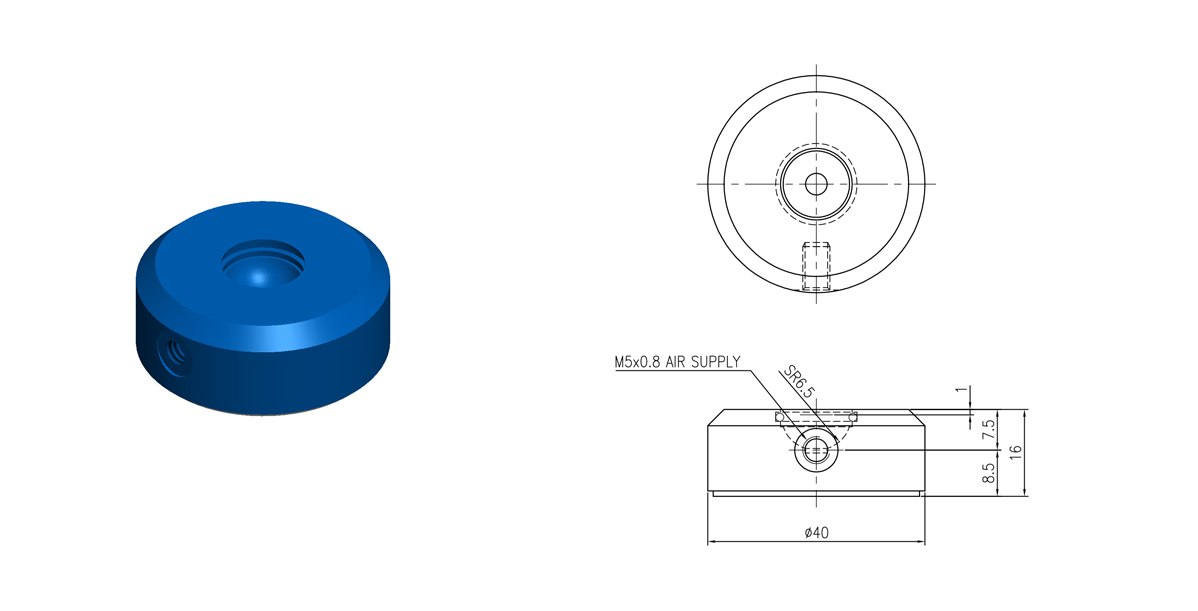

T10040S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 206 | 258 |
| Stiffness | N/μm | 32 | 40 |
| Flow | ℓ/min | 1.3 | 2.0 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø40 | |
| Bearing Height | mm | 16 | |
| Bearing Weight | kg | 0.04 | |
| Flatness | μm | 0.5 | |
| Ball Socket Size | mm | Ø13 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

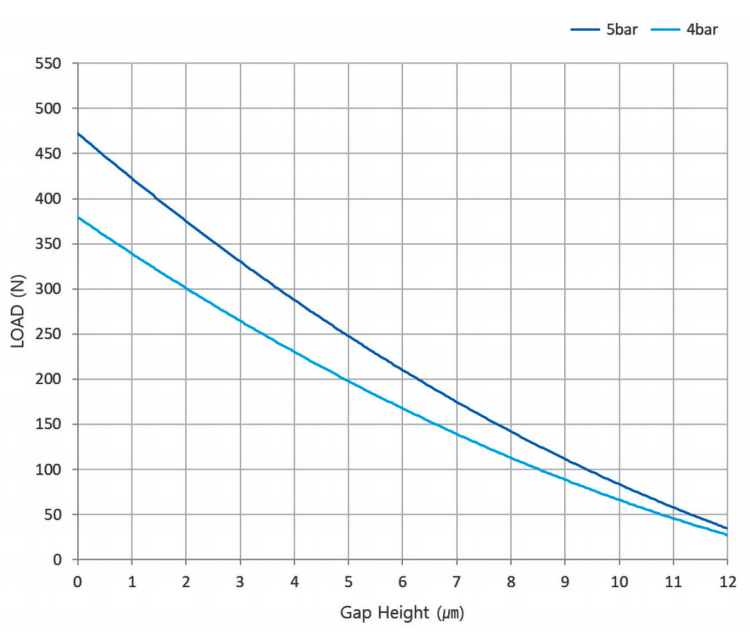

T10040S1 Round Air Bearing 40mm Load Graph
