T10080S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 1128 | 1410 |
| Stiffness | N/μm | 114 | 143 |
| Flow | ℓ/min | 4.7 | 7.1 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø80 | |
| Bearing Height | mm | 20 | |
| Bearing Weight | kg | 0.22 | |
| Flatness | μm | 0.5 | |
| Ball Socket Size | mm | Ø13 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

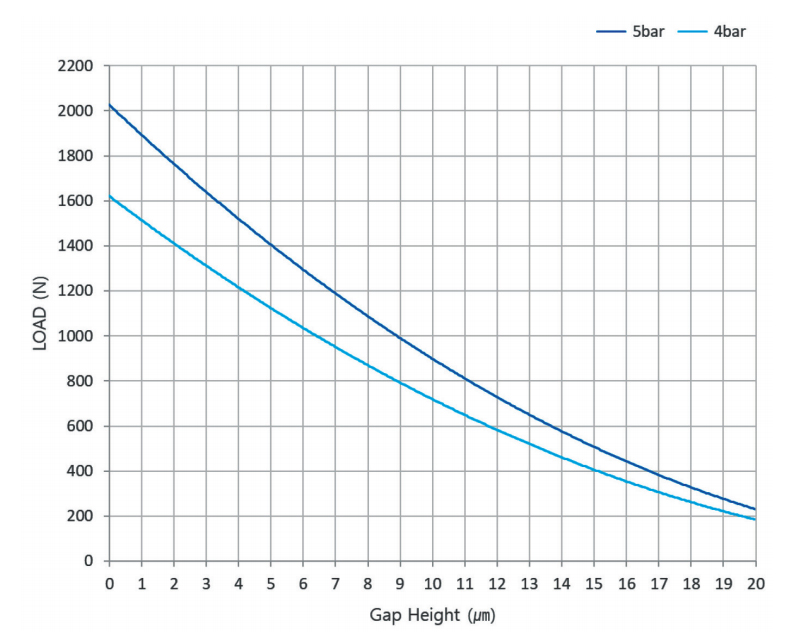

T10080S1 Round Air Bearing 80mm Load Graph
