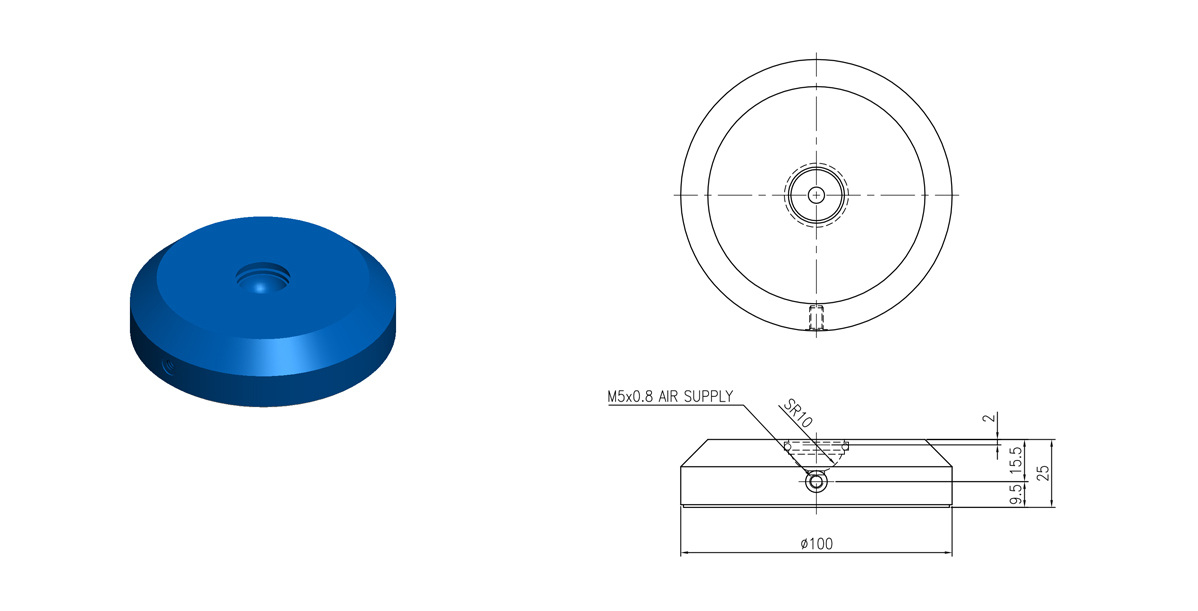

T10100S1
| Input Pressure | bar | 4 | 5 |
|---|---|---|---|
| Ideal Load | N | 1898 | 2373 |
| Stiffness | N/μm | 184 | 230 |
| Flow | ℓ/min | 7.1 | 10.7 |
| Fly Height | μm | 5 | |
| Bearing Size | mm | Ø100 | |
| Bearing Height | mm | 25 | |
| Bearing Weight | kg | 0.42 | |
| Flatness | μm | 1.0 | |
| Ball Socket Size | mm | Ø20 | |
| Pressure Port Thread | mm | M5×0.8 | |
| Bearing Material | Anodized Aluminum / Carbon | ||
| Common Guide Surfaces | Granite, ceramics, hard-anodized aluminum, stainless steel | ||
| Suggested Guide Surface Finish | 16 RMS | ||

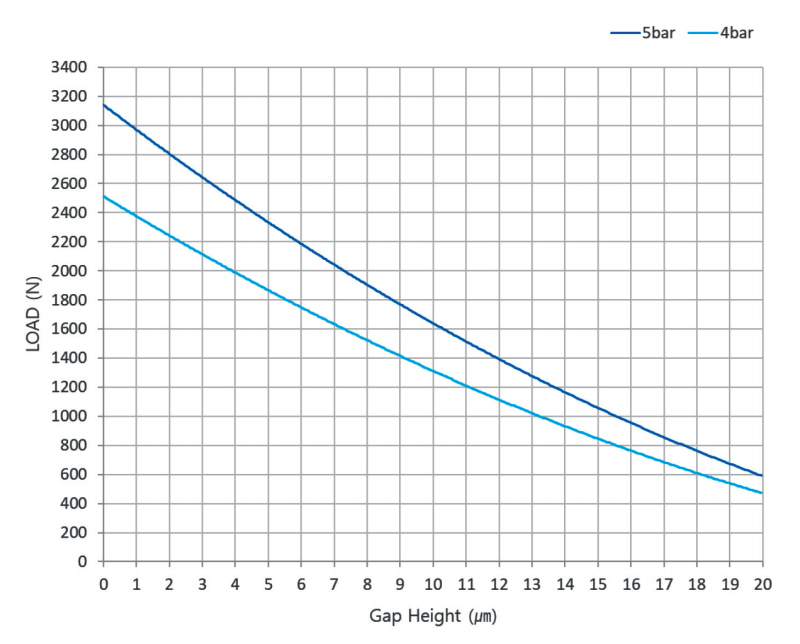

T10100S1 Round Air Bearing 100mm Load Graph
